POE RELAY

SKU: H004896R

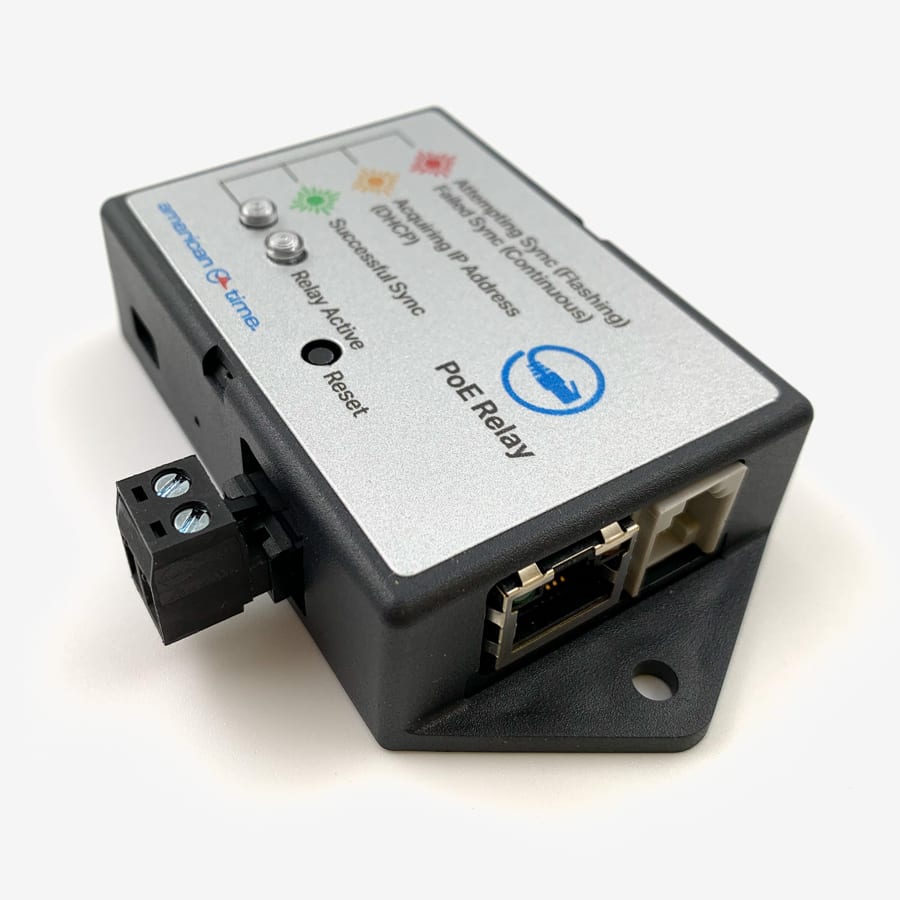

The American Time Power over Ethernet (PoE) relay is a compact receiver that provides a relay output at programmed times to activate single, low power devices such as bells, horns, and strobes. This PoE relay can be triggered by programmed events using the inCloud Management Portal or Network Clock Connect application.
  • Type: Other

$139.95

Product Specs

The Power over Ethernet (PoE) Relay is a compact receiver that provides a relay output at programmed times to activate single, low power devices such as bells, horns, and strobes. This PoE relay can be triggered by programmed events using the inCloud Management Portal or Network Clock Connect application.

  • Dimensions: 2.25″H x 4.3125″W x .875″D
  • Weight: 0.15 lbs.
  • Power options: PoE Injector, single port – TMA200, CAT 5 from PoE-enabled switch
  • Operating temperature: 41° to 131°F
  • Humidity: 0% – 95% non-condensing
  • Dry contacts: NO (or NC-special order) contacts with 2A 30vdc/0.5A 120vac rating and active closure time of 1-59 seconds. Relay can also be triggered for longer time periods by issuing an “ON” command and then a later “OFF” command.

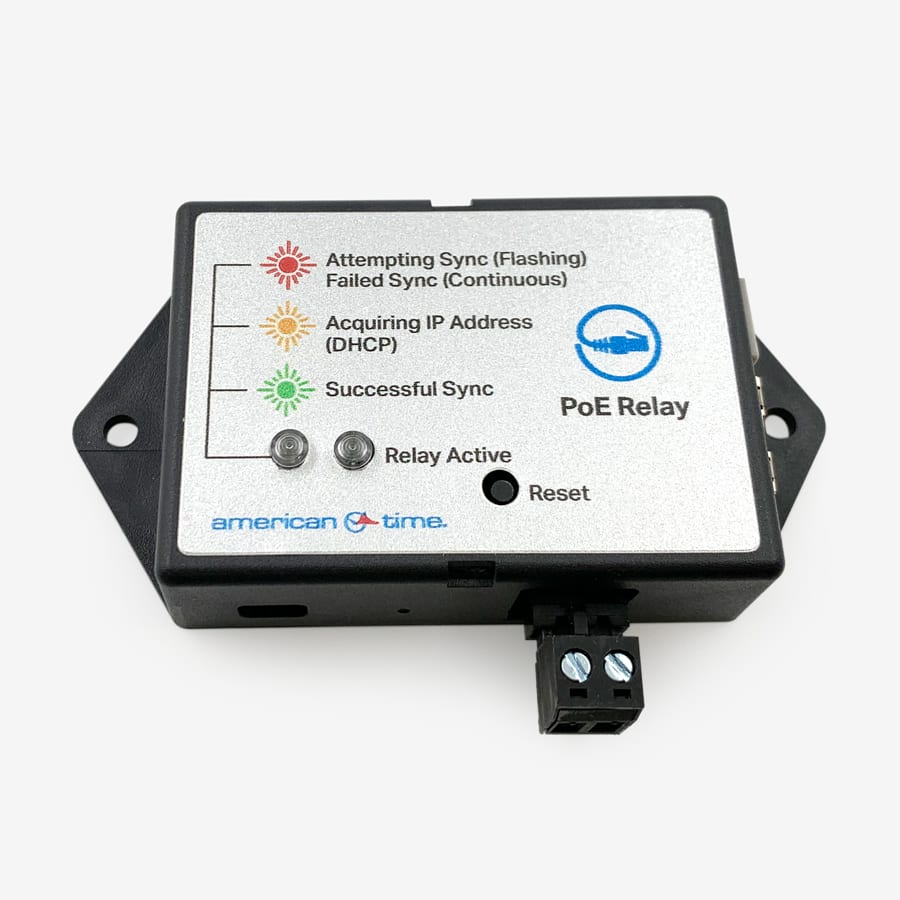

  • Front panel indicators: red (attempting sync – flashing, failed sync – continuous ), orange (acquiring IP address – DHCP) and green (successful sync) LED indicates mode status
  • Management & Scheduling: inCloud management portal (subscription required) or Network Clock Connect software (no fee)
  • Warranty: 2 Years
