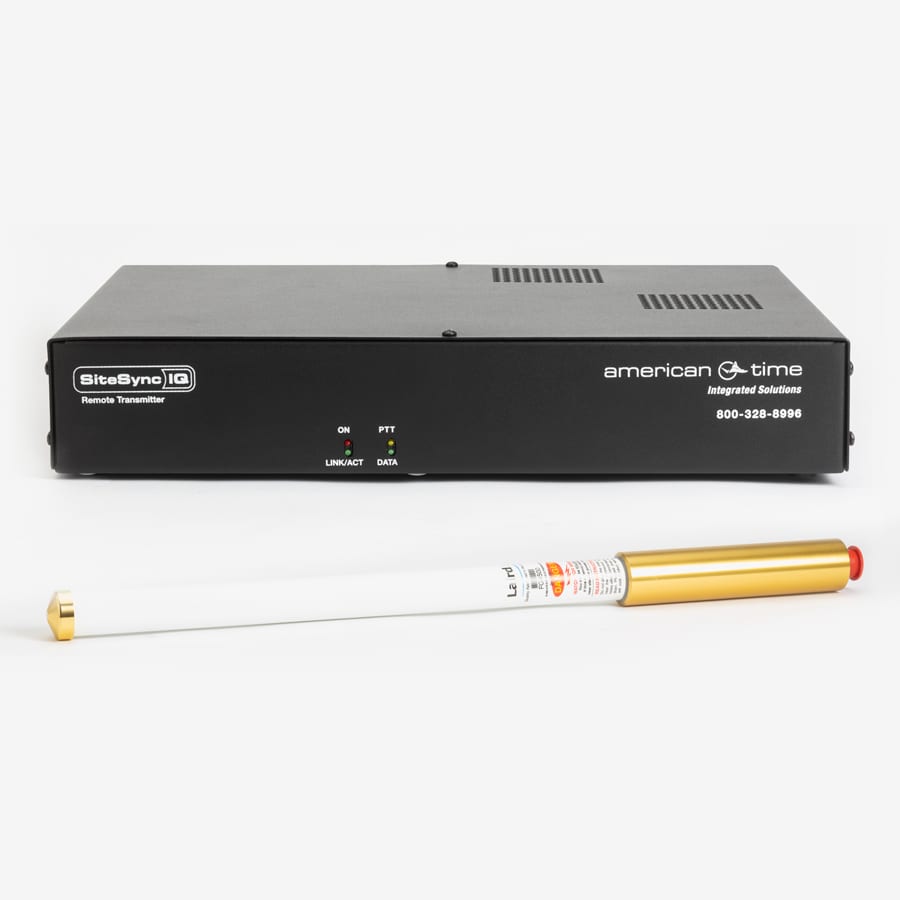

REMOTE TRANSMITTER SSIQ 30W 6 CIRC ETH CAMPUS ANTENNA ›

SKU: SSQRTM-30X6E

Run a complete wired system synchronized with a Wireless Controller
  • Type: Master Clock Controller
  • Product Series: SiteSync IQ
  • Wattage: 30 watt
  • Antenna: Campus Antenna
  • Circuits: 6 Bell Circuits – Runs Bells
  • Sync Option: Ethernet

$3,769.95

Product Specs

The wireless activation and time signal are transmitted from a SiteSync IQ System Controller (located high in the building for best signal coverage) to the Wireless Controller, which controls the wired clocks and bells/tones. The clock relays run one clock system (clock code 1 only) using one circuit for operation and one circuit for correction. This product is intended for use with a SiteSync IQ® Wireless Clock System.

  • Control up to four circuits at up to 10 amps each (resistive)
  • Clock circuits provide hourly and 12 hour correction to one wired clock system
  • Bell/tone circuits feature wireless or manual activation
  • Dimensions: 81/2″h x 101/8″w x 5″d
  • Weight:4 lbs.
  • Power: 120vac hardwired
  • Operating temperature: 41° to 131° F
  • Humidity: 0% – 95% Non-condensing
  • Dry contacts: 10A 240v (resistive)
  • Receiver frequency: 450-470 MHz (factory set)
  • Paging format: POCSAG, Narrow band
  • Data baud rate: 512 BPS
  • Receiver sensitivity: 10uV/M
  • Channel spacing: 12.5 KHz
  • Warranty: 5 years

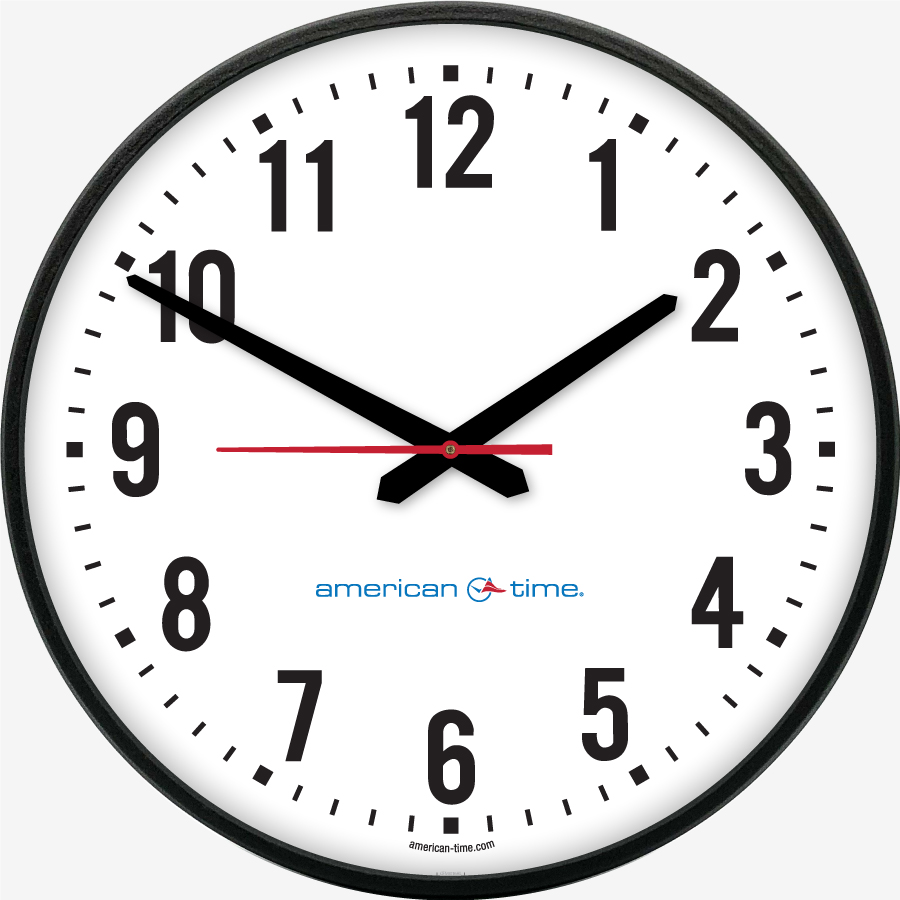

  • This device is compatible with the following clocks:
    • American Time *B & A* Series
    • Cincinnati *D10 & *D12 Series
    • Dukane 24SS* Series
    • Edwards *010 & *012 Series
    • Faraday 23770, 2372, 2380 & 2382* Series
    • Simplex 77*, 82*, 2310-92* & 6310-92* Series
