WIRELESS RELAY REMOTE CONNECT SSIQ ZONE 1

SKU: H004296-1

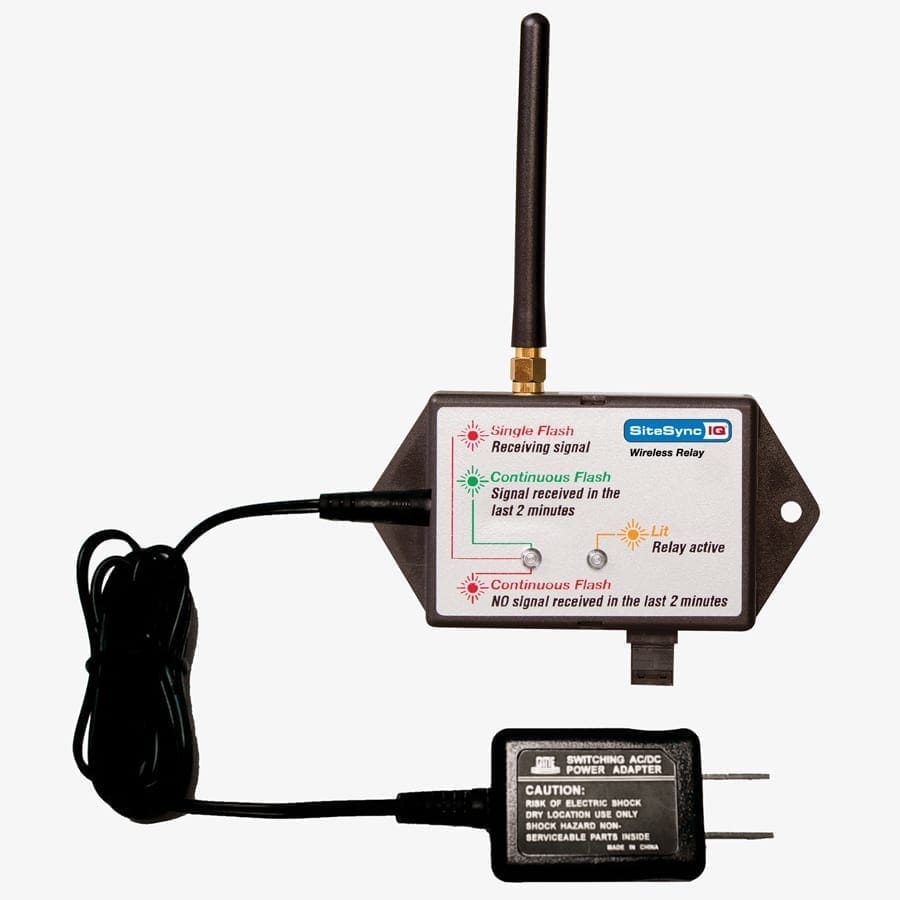

The SiteSync IQ� Wireless Relay is a compact receiver that provides a relay output at programmed times to activate individual low power devices such as bells, horns and strobes.
  • Type: Signaling Equipment

$174.95

Product Specs

The SiteSync IQ® Wireless Relay is a compact receiver that provides a relay output at programmed times to activate individual low power devices such as bells, horns and strobes. The wireless relay can be triggered by programmed events in the SiteSync IQ system controller or on demand using the MAN button on the system controller. If your system controller is equipped with the Ethernet option, events can be triggered via the circuit tab of the SiteSync IQ Remote Connect web interface from any computer with internet access.

This product is intended for use with a SiteSync IQ® Wireless Clock System.

  • The part number you order must correspond to the circuit the relay will link to. i.e. H004296-1 specifies Circuit 1; H004296-2 specifies Circuit 2
  • Dimensions: 21⁄4″h x 45⁄16″w x 7⁄8″d
  • Weight: 0.28 lbs.
  • Power options: UL Listed AC wall adaptor 120vac – 9V 650mA (adaptor included with module)
  • Operating temperature: .41° to 131°F
  • Humidity: 0% – 95% Non-condensing
  • Dry contacts: NO (or NC-special order) contacts with 2A 30vdc/0.5A 120vac Rating and active closure time of 1-9 seconds
  • Receiver frequency: 450-470 MHz (factory set)
  • Antenna type: External
