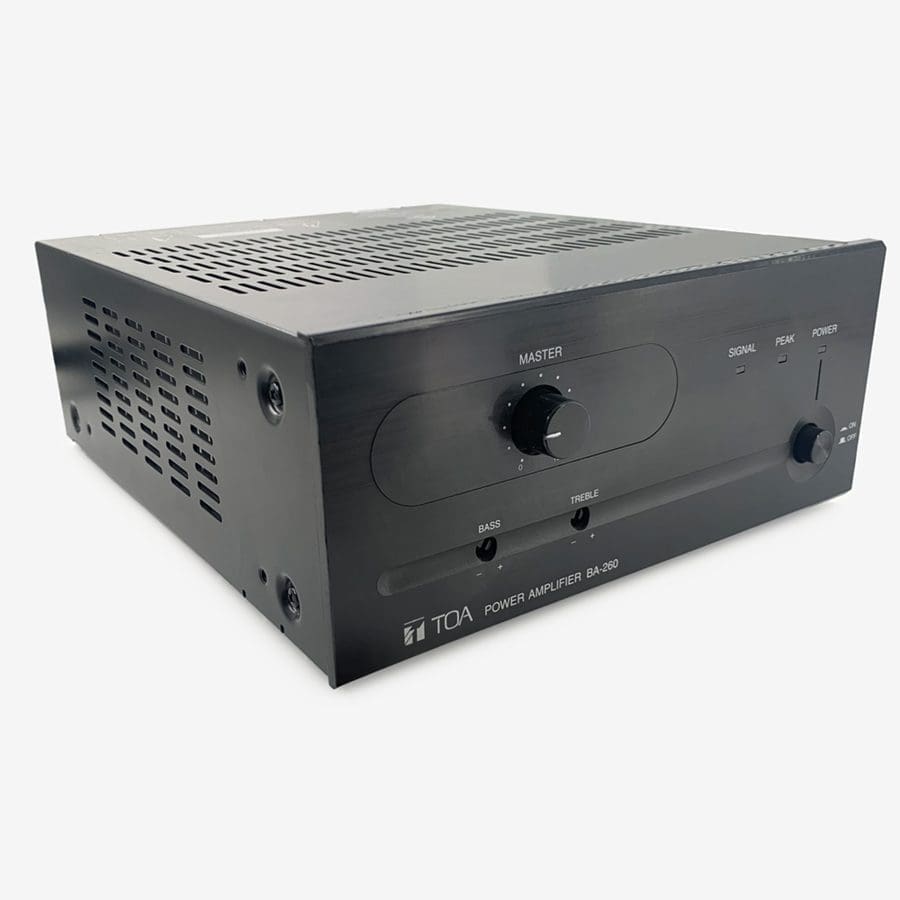

The TOA BA-260 Amplifier provides 60 watts of power to 4 ohm, 25 & 70V speakers in installed sound applications. The amplifier features a line input, volume control and recessed treble & bass controls. The TOA BA-260 features removable terminal block connectors and is ideal for amplifying audio in a specific zone, or as the main amplifier in any commercial sound/paging audio system.

Power Source – 120 V AC, 60 Hz
Rated Output – 60 W
Power Consumption – 130 W (rated output), 66 W (based on cULus standards)
Frequency Response – 50 Hz – 20 kHz
Total Harmonic Distortion – 0.5 % or less, at 1 kHz, rated output
Signal to Noise Ratio – 80 dB or more
(Band Pass: 20 Hz – 20 kHz, Tone Controls: Centered)

Input
Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced, removable terminal block or RCA jack

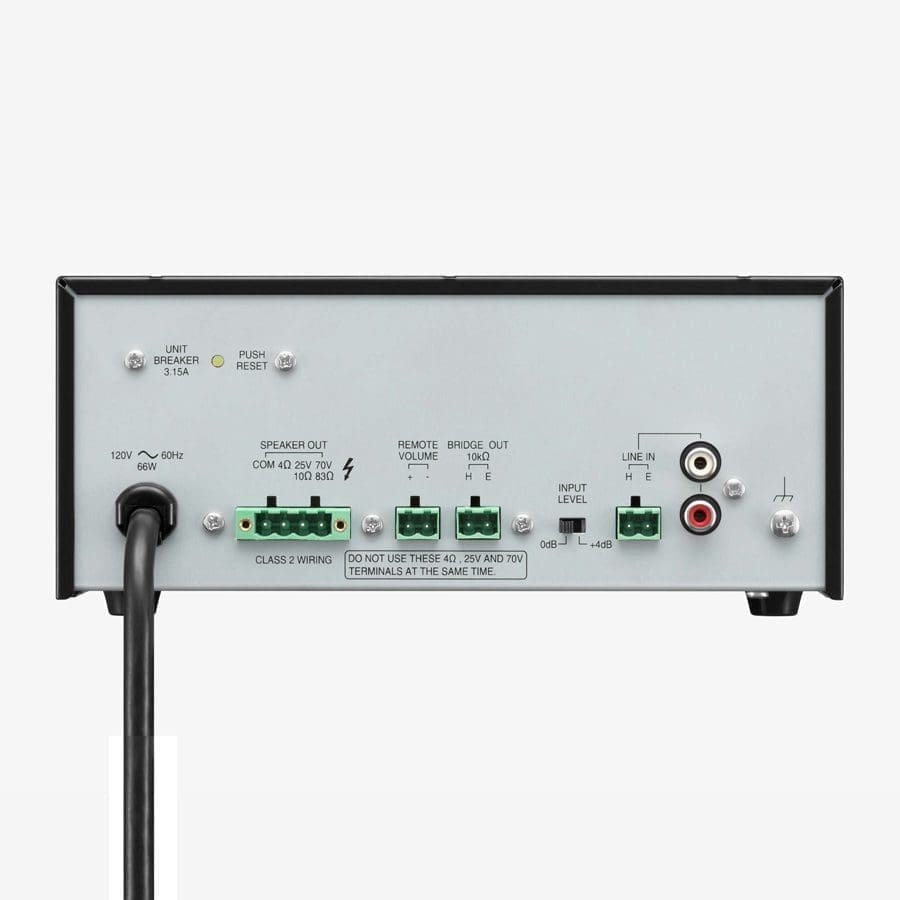

Output
Speaker: 4 Ω, 25 V (10 Ω) and 70 V (83 Ω), balanced, removable terminal block
Bridge: parallel in Line in, removable terminal block

Output Regulation – 2 dB or less, no load to full load (1 kHz)

Tone Control
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz

Control
Master gain control, Bass tone control, Treble tone control,

Input
Level selector switch, Remote Volume control, Power ON/OFF switch

Indicator – Power LED, Signal LED, Peak LED
Operating Temperature – 0 ℃ to +35 ℃ (32 ℉ to 95 ℉)
Operating Humidity – 35 % to 80 %RH (no condensation)

Finish
Panel: ABS resin, black
Case: Steel plate, black, paint

Dimensions 210 (W) x 94.3 (H) x 265 (D) mm (8.27 x 3.71″ x10.43″)
Weight 4.6 kg (10.14 lb)

Included Accessories
Volume control cover: YA-920×1
Removable terminal plug (2 pins)x3
Removable terminal plug (4 pins)x1
3.5mm to RCA Stereo cablex1
