Wi-Fi Relay

Wi-Fi Relay

SKU: W4ARELAY

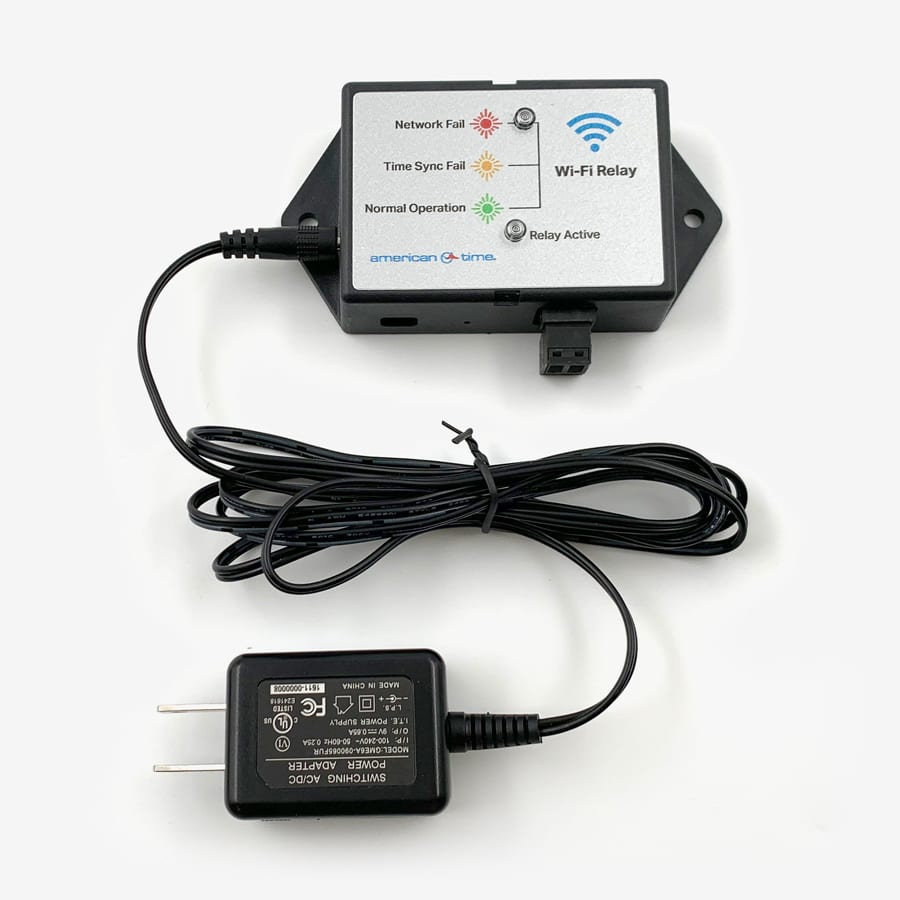

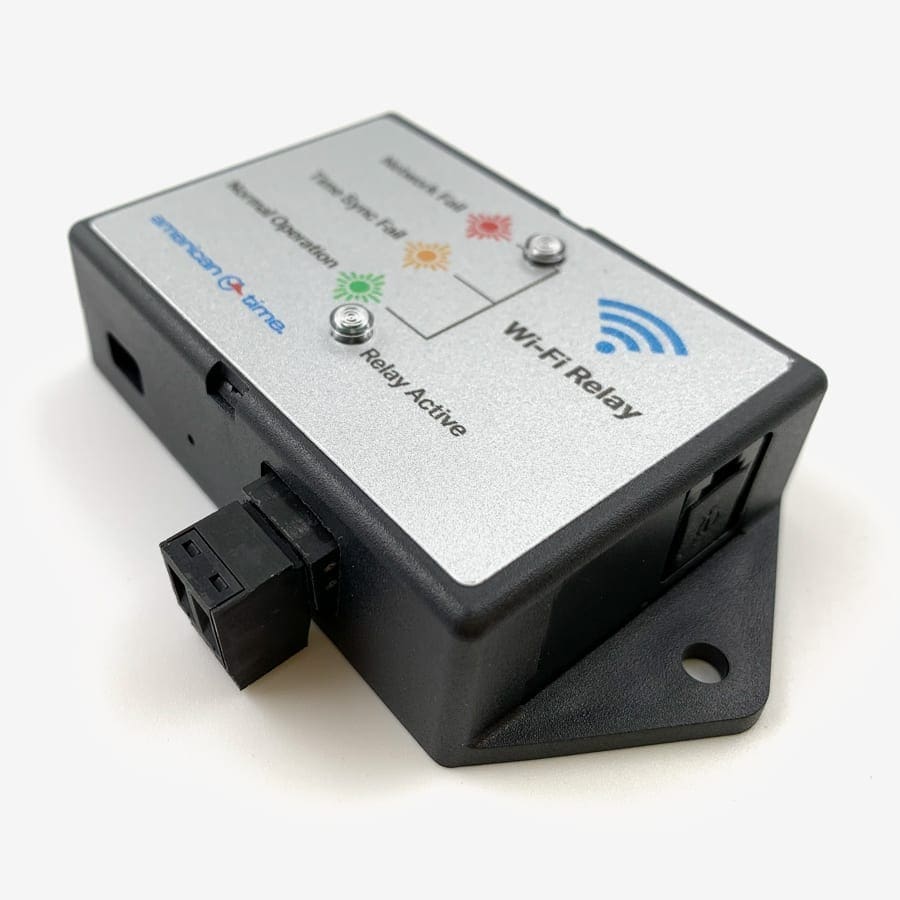

The American Time Wi-Fi relay is a compact receiver that provides a relay output at programmed times to activate low power devices such as bells, horns, and strobes. The Wi-Fi relay is managed by the inCloud Management Portal and is triggered by programmed events in the inCloud schedule dashboard.

  • Type: Signaling Equipment
  • Product Series: Wi-Fi
This replaces the following model numbers: H005240, H005184
$220.95

The American Time Wi-Fi relay is a compact receiver that provides a relay output at programmed times to activate low power devices such as bells, horns, and strobes. The Wi-Fi relay is managed by the inCloud® Management Portal and is triggered by programmed events in the inCloud schedule dashboard.

Use of this product requires an active subscription to the inCloud management portal.

  • Dimensions: 2.25″”h x 4.3125″”w x .875″”d
  • Weight: 0.28 lbs.
  • Power options: UL Listed AC wall adaptor 120VAC/240VAC – 9V 650mA (adaptor included with module)
  • Operating temperature: 41° to 131°F
  • Humidity: 0% – 95% non-condensing
  • Dry contacts: Normally-open contacts with 2A 30vdc/0.5A 120vac resistive load. Rating and active
    closure time of 1-59 seconds. Relay can also be triggered for longer time periods by
    issuing an “”ON”” command and then a later “”OFF”” command.
  • Wi-Fi: 802.11n (802.11b/g compatible, 2.4 GHz only)
  • Security protocols: WEP, WPA/WPA2 and Enterprise (PEAPv0-MSCHAPv2)
  • Front panel indicators: red (network fail), orange (time sync fail) and green (normal operation) LED indicates mode status
  • Management & Scheduling: inCloud management portal (subscription required)
  • Antenna type: Internal
  • Warranty: 2 Years
